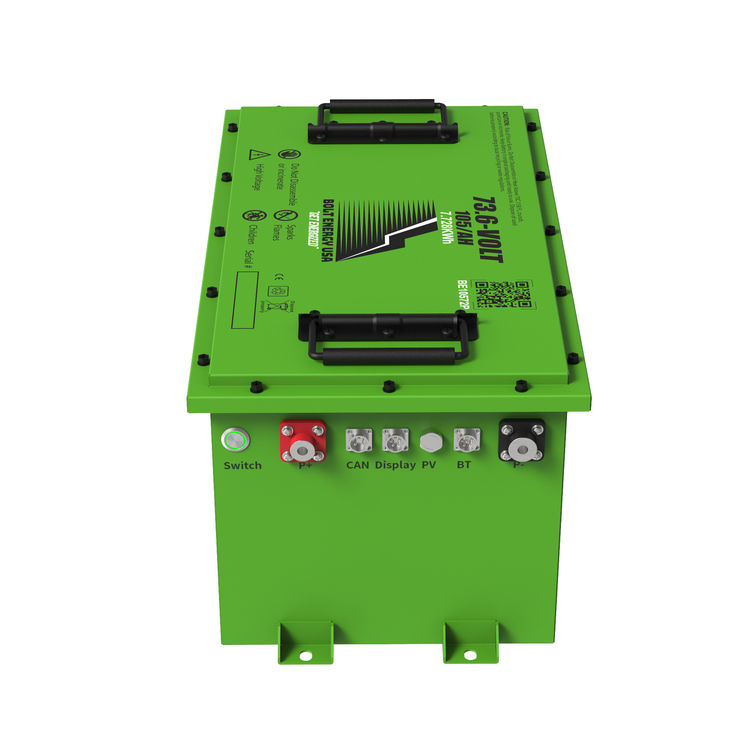

Unleash the hair-raising acceleration your 72V cart was actually built for. This maintenance-free heart ensures reliability, ensuring you own the road from the first mile to the last.
Fits 72 Volt PTVs
Heated and Non-Heated Options Available
Up to 70 Miles Range

Standard Kit Includes
73.6 Volt 105AH Battery, Bluetooth® receiver, Smart SOC state-of-charge meter, 3/8" Battery ring terminal connectors, 10" Tie straps, Waterproof high-speed charger, Mounting bracket, AC hardwire port, DECO cover plate (universal or Club Car®), 15ft 12-AWG lighted extension cord

Professional Kit Includes
All items from Standard Kit Plus: 50-Amp Voltage Reducer, 2x 40" 2AWG premium installation cables, 400A Heavy-duty solenoid, Lead battery removal strap

Heated Battery Details:
 Heated batteries warm themselves when charging until reaching about 34°F, then charge normally. The heating system only runs while plugged in and shuts off once the proper temperature is reached. They can charge in cold environments like garages or outdoors, can warm overnight for next-day use, and the temperature charge and discharge specifications still operate the same as standard batteries.

Electrical Specifications:
Nominal Voltage: 73.6V
Working Voltage: 62 – 83.95V
Recommended Voltage: 69V – 81.93V
Nominal Capacity: 105Ah
Energy: 7,728Wh
Capacity @ 25A: 420 min
Efficiency: 0.99
Self Discharge: <3% per Month

Discharge Specifications:
Maximum Continuous Discharge Current: 250A
Peak Discharge Current: 520A ± 15.6A (30S)
BMS Discharge Current Cut-Off: 260 A ± 7.8A (50S)
520A ± 15.6A (30S)

Charge Specifications:
Recommended Charge Current: 5 – 52A
Maximum Input Current: 350A
Charge Current Cut-Off: 375A
BMS Charge Voltage Cut-Off: 84V
Reconnect Voltage: <84V
Charging Temp. Range: 34°F to 140°F (0-60°C)

Mechanical Specifications:
Dimensions (L x W x H): 20.08″ x 10.75″ x 10.39″
Weight: 137.26lbs (62.26kg)
Terminal Type: M8*1.5*25mm
Cell Configuration: 1P23S
Case Material: Powder Coated Steel
Enclosure Protection: Designed with IP66 Stardard
Cell Type – Chemistry: Prismatic- LiFePO4

Communication:
Bluetooth: Bluetooth receiver
CAN: CAN port for testing battery
