Peace of Mind
12-year warranty and hassle-free ownership backed by an industry leader. Guaranteed.
36V, 48V, and 72V Lithium Batteries
Extended Range
Drive farther and charge faster with a battery built for maximum distance and all-day freedom.
No Maintenance
Zero upkeep required while never worrying about a dead battery with automatic storage mode.
Built for Safety
Smart power, zero worry with multiple layers of protection.
Invest in Longevity
Stop paying for replacements and start outlasting the others.
72V carts

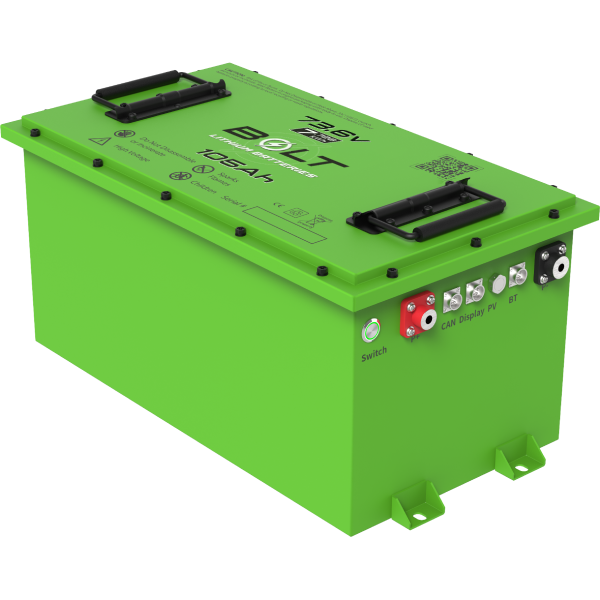

73.6V 105Ah
The 72-volt pack
72V carts • Up to 70 miles • Heated
$3,501.34
Shop This Battery
72V carts
73.6V nominal. Built for 72-volt systems.
Up to 70 miles
105Ah, about 7.7 kWh.
Heated pack
Warms itself before a cold charge.
73.6V 105Ah
This is the Bolt pack for 72-volt carts and PTVs. It is a heated 73.6V 105Ah LiFePO4 battery, about 7.7 kWh, with the same 250-amp continuous discharge as the 48-volt packs. The Professional kit for this voltage includes a 50-amp voltage reducer.
Heated. When the pack is at or below 34°F and the charger is connected, the heater warms the cells before charging starts, then shuts off.
Highlights
- Drop-in LiFePO4 pack for 72V golf carts and PTVs
- Heated battery for carts stored in an unheated garage
- Bluetooth receiver and a smart state-of-charge meter in the kit
- IP66 powder-coated steel case
- 12-year warranty when the pack is registered on time
Standard kit
- 73.6V 105Ah battery
- Bluetooth receiver
- Smart state-of-charge meter
- 3/8" ring terminals
- 10" tie straps
- Waterproof high-speed charger
- Mounting bracket
- AC hardwire port
- Deco cover plate (universal or Club Car)
- 15 ft 12-AWG lighted extension cord
Professional kit also includes
- 50-amp voltage reducer
- Two 40" 2-AWG installation cables
- 400A solenoid
- Lead-battery removal strap
Full specifications
Mechanical
- Dimensions (L × W × H)
- 20.08" × 10.75" × 10.39"
- Weight
- 137.26 lb
- Case
- Powder-coated steel
- Enclosure
- IP66
- Terminals
- M8
- Cell layout
- 1P23S prismatic LiFePO4
Electrical
- Nominal voltage
- 73.6V
- Working voltage
- 62–83.95V
- Recommended voltage
- 69–81.93V
- Capacity
- 105Ah
- Energy
- 7,728 Wh
- Efficiency
- 99%
- Self-discharge
- Under 3% per month
Discharge
- Continuous
- 250A
- Peak
- 520A ± 15.6A for 30 seconds
- BMS cut-off
- 260A ± 7.8A for 50 seconds
Charging
- Recommended current
- 5–52A
- Maximum input
- 350A
- Charge cut-off
- 375A
- BMS voltage cut-off
- 84V
- Reconnect
- Under 84V
- Charge temperature
- 34°F to 140°F
Communication
- Bluetooth
- Bluetooth receiver
- CAN
- CAN port for testing
48V carts
51.2V 60Ah Square
The compact 48-volt pack
48V carts • Up to 24 miles • Heated
$2,001.15
Shop This Battery
48V carts
51.2V nominal. Square case.
Up to 24 miles
60Ah, about 3.1 kWh.
Heated pack
Warms itself before a cold charge.
51.2V 60Ah Square
The square 51.2V 60Ah pack is the smaller heated option for 48-volt carts that do not need all-day range. It uses the same 250-amp discharge rating as the larger 48-volt packs, in a shorter case.
Heated. When the pack is at or below 34°F and the charger is connected, the heater warms the cells before charging starts, then shuts off.
Highlights
- Square LiFePO4 pack for 48V golf carts and PTVs
- Heated battery for carts stored in an unheated garage
- Bluetooth receiver and a smart state-of-charge meter in the kit
- IP66 powder-coated steel case
- 12-year warranty when the pack is registered on time
Standard kit
- 51.2V 60Ah battery
- Bluetooth receiver
- Smart state-of-charge meter
- 3/8" ring terminals
- 10" tie straps
- Waterproof high-speed charger
- Mounting bracket
- AC hardwire port
- Deco cover plate (universal or Club Car)
- 15 ft 12-AWG lighted extension cord
Professional kit also includes
- 30-amp voltage reducer
- Two 40" 2-AWG installation cables
- 400A solenoid
- Lead-battery removal strap
Full specifications
Mechanical
- Dimensions (L × W × H)
- 12.8" × 12.01" × 10.28"
- Weight
- 72.75 lb
- Case
- Powder-coated steel
- Enclosure
- IP66
- Terminals
- M8
- Cell layout
- 1P16S prismatic LiFePO4
Electrical
- Nominal voltage
- 51.2V
- Working voltage
- 43.2–58.4V
- Recommended voltage
- 48–57V
- Capacity
- 60Ah
- Energy
- 3,072 Wh
- Efficiency
- 99%
- Self-discharge
- Under 3% per month
Discharge
- Continuous
- 250A
- Peak
- 520A ± 15.6A for 30 seconds
- BMS cut-off
- 260A ± 7.8A for 50 seconds
Charging
- Recommended current
- 5–52A
- Maximum input
- 350A
- Charge cut-off
- 375A
- BMS voltage cut-off
- 58.5V
- Reconnect
- Under 58.5V
- Charge temperature
- 34°F to 140°F
Communication
- Bluetooth
- Bluetooth receiver
- CAN
- CAN port for testing
48V carts

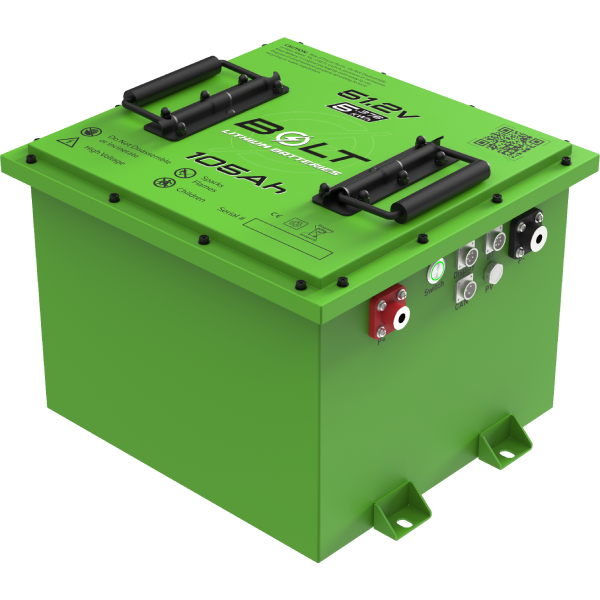

51.2V 105Ah Square
The everyday 48-volt pack
48V carts • Up to 50 miles • Heated
$2,621.00
Shop This Battery
48V carts
51.2V nominal. Square case.
Up to 50 miles
105Ah, about 5.4 kWh.
Heated pack
Warms itself before a cold charge.
51.2V 105Ah Square
The square 51.2V 105Ah pack is the main 48-volt Bolt battery. It is heated. Bolt rates it up to about 50 miles, and the square case fits many common battery trays.
Heated. When the pack is at or below 34°F and the charger is connected, the heater warms the cells before charging starts, then shuts off.
Highlights
- Square LiFePO4 pack for 48V golf carts and PTVs
- Heated battery for carts stored in an unheated garage
- Bluetooth receiver and a smart state-of-charge meter in the kit
- IP66 powder-coated steel case
- 12-year warranty when the pack is registered on time
Standard kit
- 51.2V 105Ah square battery
- Bluetooth receiver
- Smart state-of-charge meter
- 3/8" ring terminals
- 10" tie straps
- Waterproof high-speed charger
- Mounting bracket
- AC hardwire port
- Deco cover plate (universal or Club Car)
- 15 ft 12-AWG lighted extension cord
Professional kit also includes
- 30-amp voltage reducer
- Two 40" 2-AWG installation cables
- 400A solenoid
- Lead-battery removal strap
Full specifications
Mechanical
- Dimensions (L × W × H)
- 12.8" × 12.01" × 10.42"
- Weight
- 100.8 lb
- Case
- Powder-coated steel
- Enclosure
- IP66
- Terminals
- M8
- Cell layout
- 1P16S prismatic LiFePO4
Electrical
- Nominal voltage
- 51.2V
- Working voltage
- 43.2–58.4V
- Recommended voltage
- 48–57V
- Capacity
- 105Ah
- Energy
- 5,376 Wh
- Runtime at 25A
- 252 minutes
- Efficiency
- 99%
- Self-discharge
- Under 3% per month
Discharge
- Continuous
- 250A
- Peak
- 520A ± 15.6A for 30 seconds
- BMS cut-off
- 260A ± 7.8A for 50 seconds
Charging
- Recommended current
- 5–52A
- Maximum input
- 350A
- Charge cut-off
- 375A
- BMS voltage cut-off
- 58.5V
- Reconnect
- Under 58.5V
- Charge temperature
- 34°F to 140°F
Communication
- Bluetooth
- Bluetooth receiver
- CAN
- CAN port for testing
48V carts

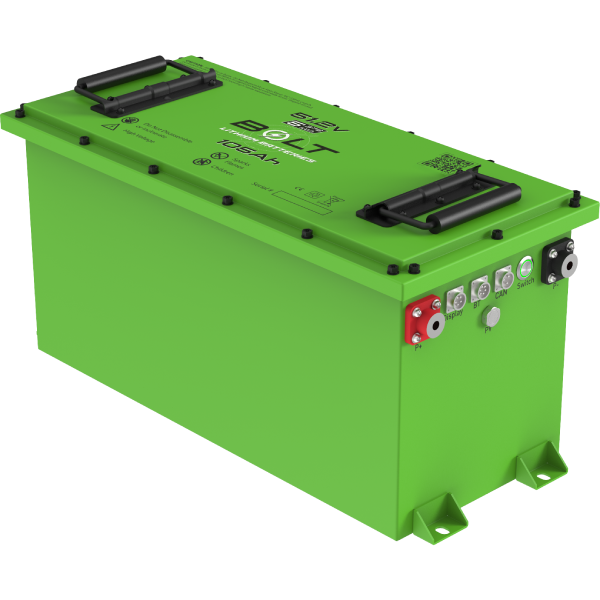

51.2V 105Ah Thin
105Ah in a thinner case
48V carts • Up to 50 miles • Heated • Thin case
$2,621.08
Shop This Battery
Thin case
20" long and about 8.4" wide.
Up to 50 miles
105Ah, about 5.4 kWh.
Heated pack
Warms itself before a cold charge.
51.2V 105Ah Thin
Same 51.2V 105Ah electrical rating as the square pack, in a long thin case for trays that cannot take the square footprint. This version is offered heated.
Heated. When the pack is at or below 34°F and the charger is connected, the heater warms the cells before charging starts, then shuts off.
Highlights
- Thin LiFePO4 pack for 48V trays that need a narrower battery
- Same 105Ah rating as the square 48V pack
- Bluetooth receiver and a smart state-of-charge meter in the kit
- IP66 powder-coated steel case
- 12-year warranty when the pack is registered on time
Standard kit
- 51.2V 105Ah thin battery
- Bluetooth receiver
- Smart state-of-charge meter
- 3/8" ring terminals
- 10" tie straps
- Waterproof high-speed charger
- Mounting bracket
- AC hardwire port
- Deco cover plate (universal or Club Car)
- 15 ft 12-AWG lighted extension cord
Professional kit also includes
- 30-amp voltage reducer
- Two 40" 2-AWG installation cables
- 400A solenoid
- Lead-battery removal strap
Full specifications
Mechanical
- Dimensions (L × W × H)
- 20" × 8.43" × 10.65"
- Weight
- 105 lb
- Case
- Powder-coated steel
- Enclosure
- IP66
- Terminals
- M8
- Cell layout
- 1P16S prismatic LiFePO4
Electrical
- Nominal voltage
- 51.2V
- Working voltage
- 43.2–58.4V
- Recommended voltage
- 48–57V
- Capacity
- 105Ah
- Energy
- 5,376 Wh
- Runtime at 25A
- 252 minutes
- Efficiency
- 99%
- Self-discharge
- Under 3% per month
Discharge
- Continuous
- 250A
- Peak
- 520A ± 15.6A for 30 seconds
- BMS cut-off
- 260A ± 7.8A for 50 seconds
Charging
- Recommended current
- 5–52A
- Maximum input
- 350A
- Charge cut-off
- 375A
- BMS voltage cut-off
- 58.5V
- Reconnect
- Under 58.5V
- Charge temperature
- 34°F to 140°F
Communication
- Bluetooth
- Bluetooth receiver
- CAN
- CAN port for testing
48V carts

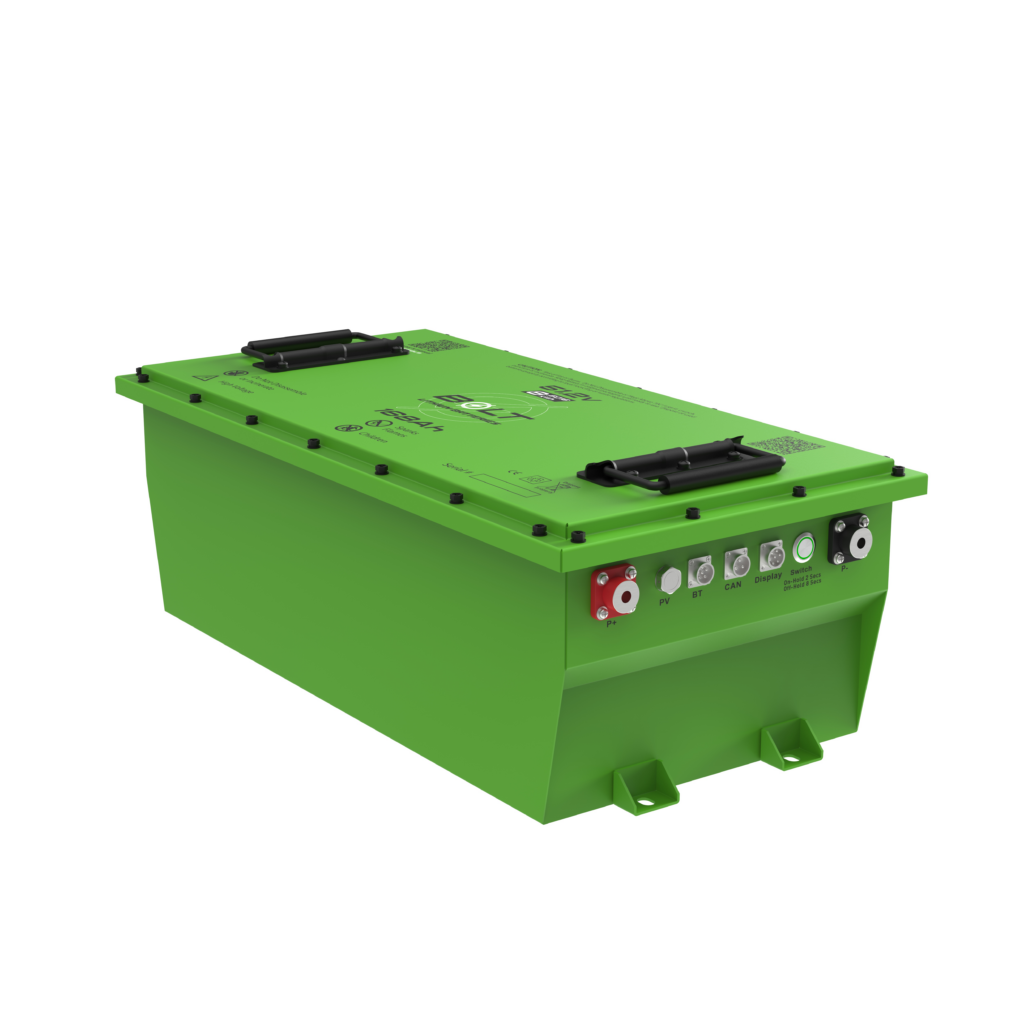

51.2V 160Ah
The long-range 48-volt pack
48V carts • Up to 70 miles • Heated
$3,532.36
Shop This Battery
48V carts
51.2V nominal. Long case.
Up to 70 miles
160Ah, about 8.2 kWh.
Heated pack
Warms itself before a cold charge.
51.2V 160Ah
The high-capacity 48-volt pack for longer days, more passengers, and hillier routes. Bolt rates it up to about 70 miles. It is a heated pack in a long case.
Heated. When the pack is at or below 34°F and the charger is connected, the heater warms the cells before charging starts, then shuts off.
Bolt’s product page titles this pack 168Ah. The energy they publish (8,192 Wh) and the 384 minutes at 25 amps both match 160Ah, which is how Magnum lists it.
Highlights
- High-capacity LiFePO4 pack for 48V carts that need more range
- Heated battery for carts stored in an unheated garage
- Bluetooth receiver and a smart state-of-charge meter in the kit
- IP66 powder-coated steel case
- 12-year warranty when the pack is registered on time
Standard kit
- 51.2V 160Ah battery
- Bluetooth receiver
- Smart state-of-charge meter
- 3/8" ring terminals
- 10" tie straps
- Waterproof high-speed charger
- Mounting bracket
- AC hardwire port
- Deco cover plate (universal or Club Car)
- 15 ft 12-AWG lighted extension cord
Professional kit also includes
- 30-amp voltage reducer
- Two 40" 2-AWG installation cables
- 400A solenoid
- Lead-battery removal strap
Full specifications
Mechanical
- Dimensions (L × W × H)
- 29.57" × 10.17" × 9.13"
- Weight
- 153 lb
- Case
- Powder-coated steel
- Enclosure
- IP66
- Terminals
- M8
- Cell layout
- 1P16S prismatic LiFePO4
Electrical
- Nominal voltage
- 51.2V
- Working voltage
- 43.2–58.4V
- Recommended voltage
- 48–57V
- Capacity
- 160Ah
- Energy
- 8,192 Wh
- Runtime at 25A
- 384 minutes
- Efficiency
- 99%
- Self-discharge
- Under 3% per month
Discharge
- Continuous
- 250A
- Peak
- 520A ± 15.6A for 30 seconds
- BMS cut-off
- 260A ± 7.8A for 50 seconds
Charging
- Recommended current
- 5–52A
- Maximum input
- 350A
- Charge cut-off
- 375A
- BMS voltage cut-off
- 58.5V
- Reconnect
- Under 58.5V
- Charge temperature
- 34°F to 140°F
Communication
- Bluetooth
- Bluetooth receiver
- CAN
- CAN port for testing
36V carts

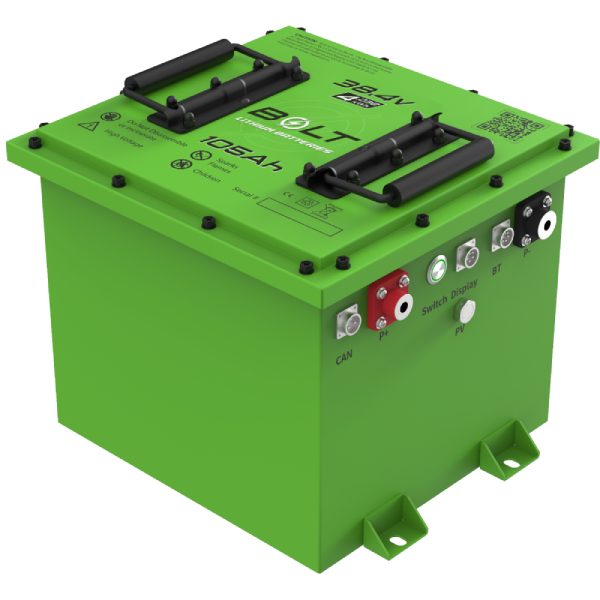

38.4V 105Ah
The 36-volt pack
36V carts • Up to 30 miles • Heated
$2,046.13
Shop This Battery
36V carts
38.4V nominal.
Up to 30 miles
105Ah, about 4.0 kWh.
Heated pack
Warms itself before a cold charge.
38.4V 105Ah
The Bolt pack for 36-volt carts. It is a heated 38.4V 105Ah LiFePO4 battery, and Bolt rates it up to about 30 miles.
Heated. When the pack is at or below 34°F and the charger is connected, the heater warms the cells before charging starts, then shuts off.
Highlights
- LiFePO4 pack for 36V golf carts and PTVs
- Heated battery for carts stored in an unheated garage
- Bluetooth receiver and a smart state-of-charge meter in the kit
- IP66 powder-coated steel case
- 12-year warranty when the pack is registered on time
Standard kit
- 38.4V 105Ah battery
- Bluetooth receiver
- Smart state-of-charge meter
- 3/8" ring terminals
- 10" tie straps
- Waterproof high-speed charger
- Mounting bracket
- AC hardwire port
- Deco cover plate (universal or Club Car)
- 15 ft 12-AWG lighted extension cord
Professional kit also includes
- 30-amp voltage reducer
- Two 40" 2-AWG installation cables
- 400A solenoid
- Lead-battery removal strap
Full specifications
Mechanical
- Dimensions (L × W × H)
- 11.14" × 10.58" × 10.67"
- Weight
- 77.27 lb
- Case
- Powder-coated steel
- Enclosure
- IP66
- Terminals
- M8
- Cell layout
- 1P16S prismatic LiFePO4
Electrical
- Nominal voltage
- 38.4V
- Working voltage
- 32.4–43.8V
- Recommended voltage
- 36–42.6V
- Capacity
- 105Ah
- Energy
- 4,032 Wh
- Runtime at 25A
- 252 minutes
- Efficiency
- 99%
- Self-discharge
- Under 3% per month
Discharge
- Continuous
- 250A
- Peak
- 520A ± 15.6A for 30 seconds
- BMS cut-off
- 260A ± 7.8A for 50 seconds
Charging
- Recommended current
- 5–52A
- Maximum input
- 350A
- Charge cut-off
- 375A
- BMS voltage cut-off
- 43.8V
- Reconnect
- Under 43.8V
- Charge temperature
- 34°F to 140°F
Communication
- Bluetooth
- Bluetooth receiver
- CAN
- CAN port for testing
Specs and cart fitment are from Bolt Energy. A listed kit can still need a tray check. Magnum MD sells and installs these packs in Lago Vista, TX.
